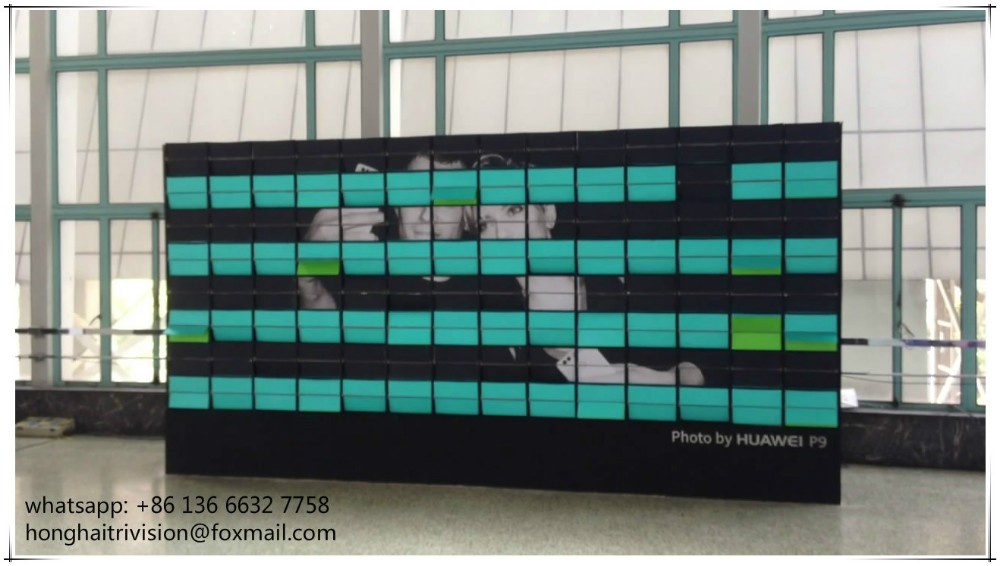

stage design conference display step motor split flap display new product for advertising
For Youtube video links, pls visit:
https://youtu.be/H4QtGw6f3RI
Contact details : Tina Zhang
Mobile: +86 136 6632 7758
Whatsapp: +86 136 6632 7758
Viber: +86 136 6632 7758
Wechat: zt973787262
Skype: tina.zhang623
Product Descriptions:
1. sub-machine specifications:
1000mm * 1000mm * 560mm
800mm * 800mm * 420mm
600mm * 600 * 320mm
500mm * 500mm * 260mm
400mm * 400mm * 220mm
300mm * 300mm * 160mm
2. Number of pictures: 3--10 (special circumstances according to
customer requirements);
3. the picture selection: a program can be designed to
automatically select one of the pieces of the picture;
4. flip tricks: Usually 8-18 species may be more;
5. turning speed: 36 degrees -180 degrees / sec adjustable;
6. motor power: 20W / square around;
7. the average power consumption (per 100 square meters): about 2
degrees per hour;
8. Weight: 40 kg per square meter;
9. wind level: more than 8, 5 set wind protection switch;
10. timer switch: controller startup and shutdown time setting
11. fixed time: 20-999 seconds adjustable
12. Application: outdoor advertising, decoration works, large House
of Art, the exhibition displaying works, sports background stations ......
Technical Advantages:
>>>Intelligent control:
Stepping motors, sensors. PLC programming industrial automation and
control systems, and product and reliable operation;
Second, the modular integration mechanism:
>>>Very complex mechanical structure of the original plurality of transmission links made of integrated
modular integrated structure, the complex becomes simple and
greatly reduce intermediate links, and therefore reliable, easy
operation and maintenance;
>>>Outdoor Design
Foreign decahedron turned mostly used indoors, outdoors still
unresolved by wind vanes picture jitter caused serious confusion
screen problems Honghai with ten turn has dozens of national
patents, the use of multiple layers of wind protection device,
ensuring that the picture in when using outdoor screens will not
seriously shake disorder:
Main Features:
1. The timer switch;
2. Screen segment operating adjustable time interval;
3. In order to prevent rotation of the screen for a long time there
in confusion, is set in the program in a certain period of time
automatically reset;
4. Select the recognition screen function: ten advertising images
while others do not show, you can set to automatically select one
you want to post pictures, each rotation angle --- --- number of
blades each rotation of the screen number, It can be set to
automatically identify the options.
5. Wind protection switch: When the wind reached level 5 or more,
the motor automatically stops running after the wind stops
automatically resume operation after 5 minutes
6. When the screen blade as motor step and dislocation, there is
the nudge buttons to correct function.
| Material List | |||
| No. | Name | Specifics | Quantity |
| 1 | stepping motor | 42HZP6017A4 | 1 |
| 2 | Sensor | 5V---NPN | 1 |
| 3 | Driving | MR2 | 1 |
| 4 | Spinner | P6-305A | 1 |
| 5 | Cable | Rubber WC4 * 3 + (1 * 2.5) | 6m |
| 6 | Aluminium Cabinet | thickness 2mm | 1.5㎡ |
| 7 | Stepping aliquot blade wheel | outer diameter 60mm | 3 |
| 8 | Fixed blade strip card | aluminium alloy, length 473mm | 10 |
| 9 | central axis | aluminium, Diameter 32--10 bisector | 1 |
| 10 | Poster plate | sunshine panel or acrylic | 10 |
| 11 | Synchronous belt | 1 | |
| Control Unit | |||
| 1 | PC | BoxX8 | 1 |
| 2 | Relay | HHZN-8,each relay control 8 units | 1/8 |
| 3 | Timing switch | KG316T | 1 |
| 4 | Leakage protection switch | DZ47LE-32 | 1 |
Certificate:

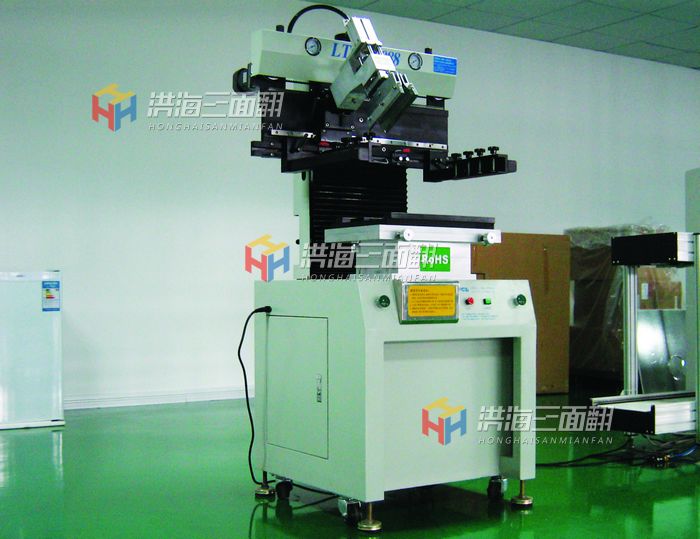

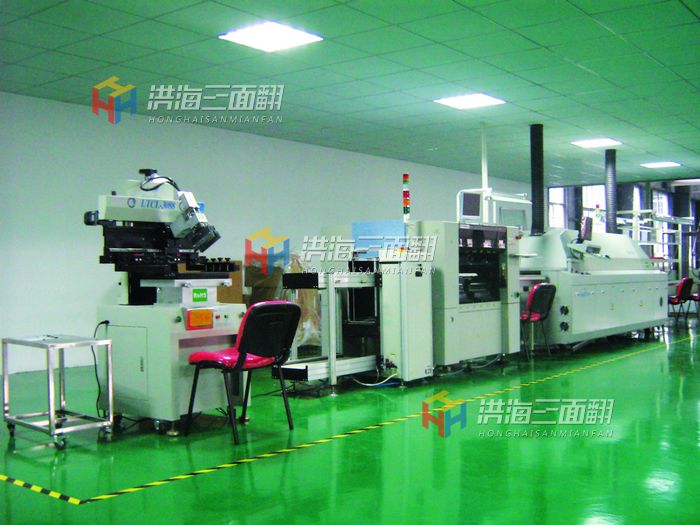

Factory View:
Honghai Photoelectric Group Co., ltd.
China's leading creative billboard manufacturer, Exclusive supplier
of tri-vision billboard for Shanghai 2010 World Expo, CNC control
throughout the whole production line, 260 workers, 20000 square
meters non-dust workshop, 20 years experience, ISO, CE,
For latest innovation, see Youtube Video Channel: https://www.youtube.com/channel/UCVfK6qWAXHfOSL55j8Wch_Q
Constant Innovation and Pursuit of Pefection.
Our Advantages
1. Big investment on R&D research; New products and developments meet client's one-stop-shopping demands;
2. Fine quality: strict quality control throughout the production and focus on customer satisfaction experience;
3. Low prices: big orders guarantees that we can get good raw materials at a lower cost; therefore could offer a much better price to customers;
4. Fast Delivery: efficient production system; lead-time for sample 3 to 5 days; big quantity orders 7 to 14 days
|
|
